Vertical Reciprocating Conveyors (VRC)
Safety Features
- Spring-loaded safety cams to arrest sudden fall of the carriage in case of lifting chain failure.
- Bottom safety limit switch to prevent hammering of the carriage in case of floor level switch failure.
- Chain tensioner limit switch to stop operation if chains are pulled due to obstruction.
- Top safety counter-weight limit switch to cut off main power supply in case of top level failure.
- Landing station collapsible doors interlocked with electro-mechanical latches.

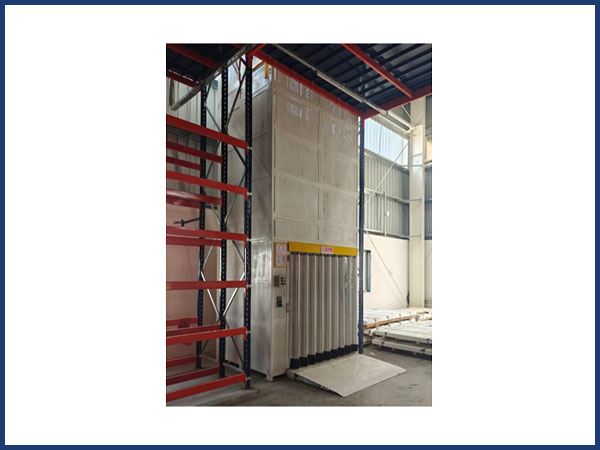

Vertical Reciprocating Conveyor (VRC)
Manufacturer | Supplier | Exporter – Pune, Maharashtra, India
We are a leading manufacturer, supplier, and exporter of Vertical Reciprocating Conveyors (VRC). VRC is an electromechanical industrial lift used for safe vertical transportation of materials and goods between different floor levels in factories, warehouses, and multi-tier mezzanines.
The carriage movement is controlled by a gearbox and brake motor through a chain and sprocket mechanism, supported by H-beam and T-guide rails with a tubular outer structure covered by perforated sheets. These systems provide quick, effective, and safe access to mezzanines, overhangs, and storage racks and can be installed indoors or outdoors.
Specifications
- Capacity : 300 Kgs to 5000 Kgs
- Lift Height : Up to 30 Mtrs
- Entry / Exit : Same, Opposite & 90°
- Structure : Self-standing / Self-supporting / Civil Shaft
- Customization : Fully customizable as per requirement
VRC Types
- Two Post VRC
- Four Post VRC
